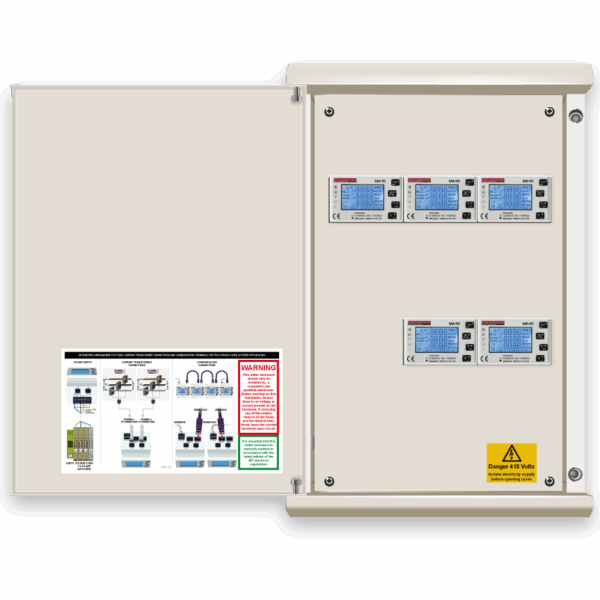

Multibox-MA-10 with 5x MA-10 meters

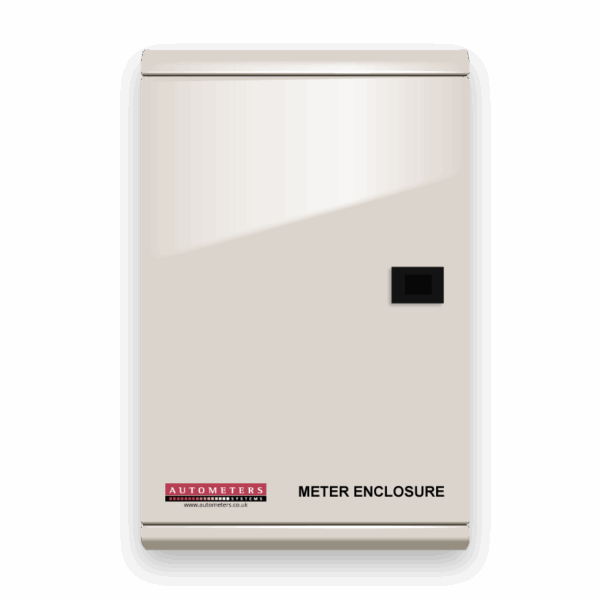

Multibox-MA-10 - Image 2

Multibox-MA-10

  • 3-5x MA-10 in metal enclosure
  • Quick-connect plug-in connectors
  • Four meters in one – Connect up to four individual CT supplies to just one meter
  • milliAmp Current Transformer Operated
  • RS 485 Modbus output
  • MID approved, appendix “B” & “D”
  • 290mm Wide x 441.5mm Height x 130mm Depth.
SKU: Multibox-MA-10 Categories: ,

Description

This model enclosure can be purchased with 3-5 MA-10 meters fitted, giving the option of 3-20 separate channels.

  • Suitable for 3-5x MA-10 meters
  • 3-20 channels
  • Fuses and Shorting terminals fitted internally
  • Assembled and Pre-wired options
  • Dimensions: 290mm Wide x 441.5mm Height x 130mm Depth.
  • Exact colour match with Schneider distribution boards
  • Paint colour: Plastic coated cream RAL 9001
  • Metal enclosure: 1.2mm CR4

MA-10 brochure short

Download

MA-10 brochure

Download
