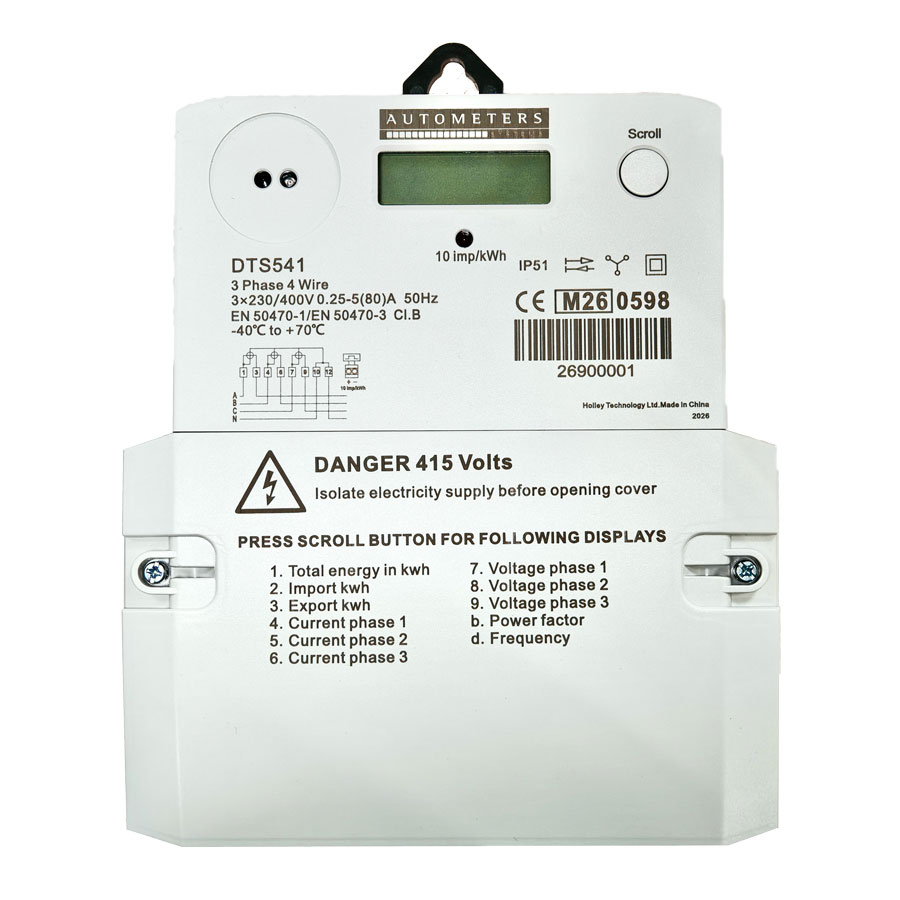

DTS-541

DTS 541

  • Three phase four wire multi-function meter
  • 100A Direct connect
  • Pulse output
  • MID approved, appendix “B” & “D”

.

SKU: DTS-541-100 Amp. Categories: ,

Description


Wiring: Three phase, four wire / Three phase, three wire (CT/VT op only) / Single phase, two wire
Connection: Direct connect
Voltage: 230V/400V
Amperage: 100A
Frequency: 50Hz
Mounting: Surface
Size: D75mm x H240mm x W170mm
Communication Output: 2 pulse outputs (1 programmable)
Certification: MID approved, appendix “B” & “D”
Horizon Compatibility: Partial
Tariffs: 4
